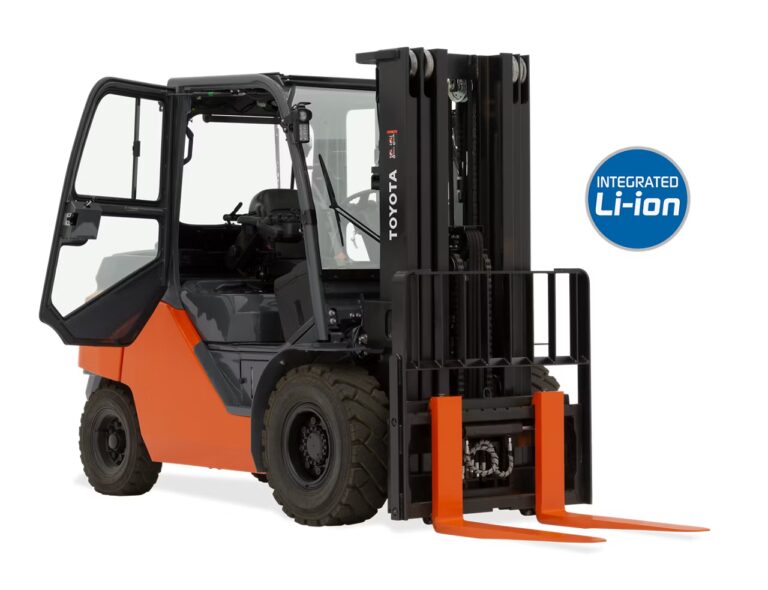

Toyota Integrated Mid Electric Pneumatic
8,000-11,000 lbs. Capacity
Toyota’s Integrated Mid Electric Pneumatic Forklift takes efficiency and performance to a whole new level. With a lifting capacity ranging from 8,000-11,000 lbs., this versatile lift can tackle your toughest handling challenges. The Integrated Mid Electric Pneumatic comes equipped with the power and performance you expect from an internal combustion forklift, but it’s ALL electric. The battery and the forklift were designed as one complete package to optimize operability, ergonomics, and productivity. Get ready to experience greater performance than you ever have before.
Overview
Toyota’s Integrated Electric Forklifts combine the power and durability you’re used to with Toyota's internal combustion forklifts, but they’re all electric. These solutions feature an integrated lithium-ion battery and proven structure that are interconnected to create a cohesive unit that maximizes ergonomics, performance, and productivity.
Why Choose an Integrated Forklift?
Toyota’s Integrated Electric Forklifts not only come equipped with power but they’re also designed with the same mindfulness as our other electric products. Your operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery to deliver maximum productivity shift after shift.
You can also feel secure knowing these lifts are built with patented features such as System of Active Stability (SAS), which engages additional safety features during operation. These lifts also come with an optional SEnS+ Smart Environment Sensor Plus, a highly innovative technology that assists operators in identifying pedestrians or objects during a shift.
• Integrated Lithium-Ion battery
• 90 Volt electrical system
• AC drive system
• AC lift system
• AC steering
• Electronic hydraulic controls
• Dash-mounted instrument display
• 11.8” diameter two-spoke steering wheel
• Load sensing power steering
• Seat-mounted Mini-lever Hydraulic Controls
• Premium, full-suspension vinyl seat
• Non-cinching seatbelt
• Integrated head light and turn signal lever
• One-way automatic fork leveling
• Poly-Clear Canopy
• System of Active StabilityTM (SAS)
• Operator Presence Sensing System (OPSS)
• Bolt-on overhead guard
• Key lowering interlock
• Electric horn
• Automatic parking brake
• Orange forks
• Speed control
• LED Headlights
• Key Off/Headlight Off System
• Easy access, no-tools floorboard
• Hood assist damper with lock device
• Easy lift hood with wide 75 degree opening
• Easy access to common service items
• Self-diagnostics
• Built-in analyze
• Cascade Component Guard (Hang-On Sideshifter)
• Hang-on Sideshifter (Cascade)
• Cascade Integral Sideshifter
• Cascade Integral Sideshifting Fork Positioner
• Cascade Hang-On Sideshifting Fork Positioner
• Integral Sideshifting Fork Positioner (Rightline)
• Integral Sideshifter (Rightline)
• 3 Way Valve (With 3rd Function Hosing)
• 4 Way Valve (With 3rd & 4th Function Hosing)
Specs
| MODEL NUMBER | LOAD CAPACITY (LBS.) | MAX. FORK HEIGHT (IN.) | TURNING RADIUS OUTSIDE (IN.) | MAX TRAVEL SPEED (MPH) | MAX. LIFTING SPEED (FPM) | GRADEABILITY (%) | BASIC RIGHT ANGLE STACK (IN.) |
|---|---|---|---|---|---|---|---|
| 9FBZ35U | 8,000 | 120 | 103.5 | 14.1 | 105 | 17.2 | 123.5 |
| 9FBZ40U | 9,000 | 120 | 105.5 | 13.9 | 104 | 15.6 | 125.5 |
| 9FBZ45U | 10,000 | 120 | 111.8 | 13.5 | 100 | 12.9 | 133.2 |
| 9FBZ50U | 11,000 | 120.5 | 112.8 | 13.5 | 100 | 11.8 | 134.6 |
* Based on 24" Load center
** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
