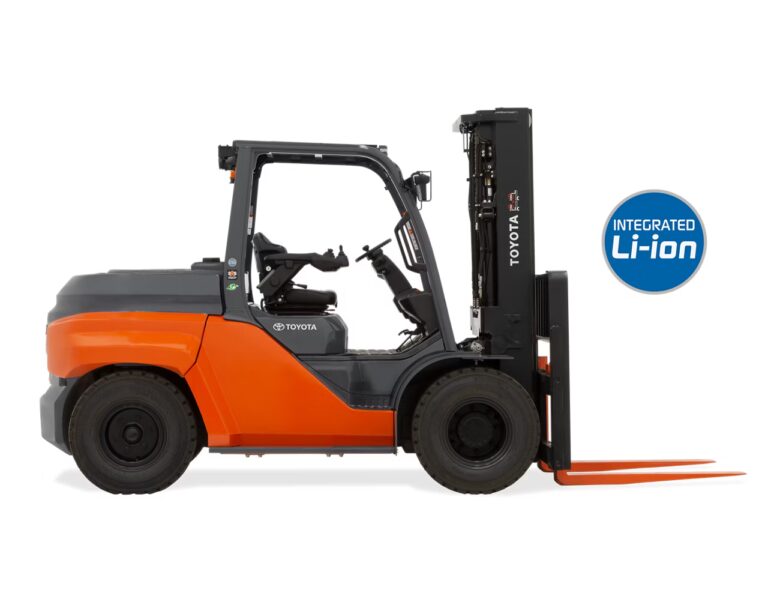

Toyota Integrated Large Electric Pneumatic
13,500-17,500 lbs. Capacity
Toyota’s Integrated Large Electric Pneumatic Forklift is the reliable and durable solution you need to handle all of your material handling tasks. This forklift packs the power you’d expect from an internal combustion forklift, but it’s ALL electric. Equipped with a proprietary, custom-designed lithium-ion battery, this forklift is built with the power your operation needs to get to the next level. The Integrated Large Electric Pneumatic was specifically designed to excel in applications such as lumber yards, construction sites, and heavy-duty manufacturing facilities. When you need to turn productivity up a notch, you can count on the Integrated Large Electric Pneumatic.
Overview
Toyota’s Integrated Electric Forklifts combine the power and durability you’re used to with Toyota's internal combustion forklifts, but they’re all electric. These solutions feature an integrated lithium-ion battery and proven structure that are interconnected to create a cohesive unit that maximizes ergonomics, performance, and productivity.
Why Choose an Integrated Forklift?
Toyota’s Integrated Electric Forklifts not only come equipped with power but they’re also designed with the same mindfulness as our other electric products. Your operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery to deliver maximum productivity shift after shift.
You can also feel secure knowing these lifts are built with patented features such as System of Active Stability (SAS), which engages additional safety features during operation. These lifts also come with an optional SEnS+ Smart Environment Sensor Plus, a highly innovative technology that assists operators in identifying pedestrians or objects during a shift.
- Integrated Lithium-Ion battery
- 90 Volt electrical system
- AC drive system
- AC lift system
- AC steering
- Electronic hydraulic controls
- Programmable hydraulics
- U.L Approved Model Type E
- Three forms of energy regeneration
– Coast control
– Plug braking
– Foot braking
- Dash mounted instrument display
- 11.8” diameter two-spoke steering wheel
- Load sensing power steering
- Seat-mounted Mini-lever Hydraulic Controls
- 12” long dual operator assist grips
- Premium, full-suspension vinyl seat
- Integrated head light and turn signal lever
- One-way automatic fork leveling
- Poly-Clear Canopy
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Automatic parking brake
- Orange forks
- Speed control
- LED Headlights
- Key Off/Headlight Off System
- Easy access, no-tools floorboard
- Hood assist damper with lock device
- Easy lift hood with wide 75 degree opening
- Easy access to common service items
- Self-diagnostics
- Built-in analyzer
- Cascade Component Guard (Hang-On Sideshifter)
- Hang-on Sideshifter (Cascade)
- Cascade Integral Sideshifter
- Cascade Integral Sideshifting Fork Positioner
- Cascade Hang-On Sideshifting Fork Positioner
- Integral Sideshifting Fork Positioner (Rightline)
- Integral Sideshifter (Rightline)
- 3 Way Valve (With 3rd Function Hosing)
- 4 Way Valve (With 3rd & 4th Function Hosing)
Specs
| MODEL NUMBER | LOAD CAPACITY | MAX. FORK HEIGHT (IN.) | OVERALL WIDTH (IN.) | TURNING RADIUS OUTSIDE (IN.) | MAX. TRAVEL SPEED (MPH) | MAX. LIFTING SPEED (FPM) | BASIC RIGHT ANGLE STACK (IN.) |
|---|---|---|---|---|---|---|---|
| 9FBZ60U | 13,500 | 120.5 | 78.7 | 128.1 | 11.6 | 12.4 | 150.9 |
| 9FBZ70U | 15,500 | 120.5 | 78.7 | 129.8 | 11.6 | 12.4 | 152.9 |
| 9FBZ70U | 17,500 | 121 | 78.7 | 131.3 | 11.3 | 12.4 | 154.6 |
* Based on 24" Load center
** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
