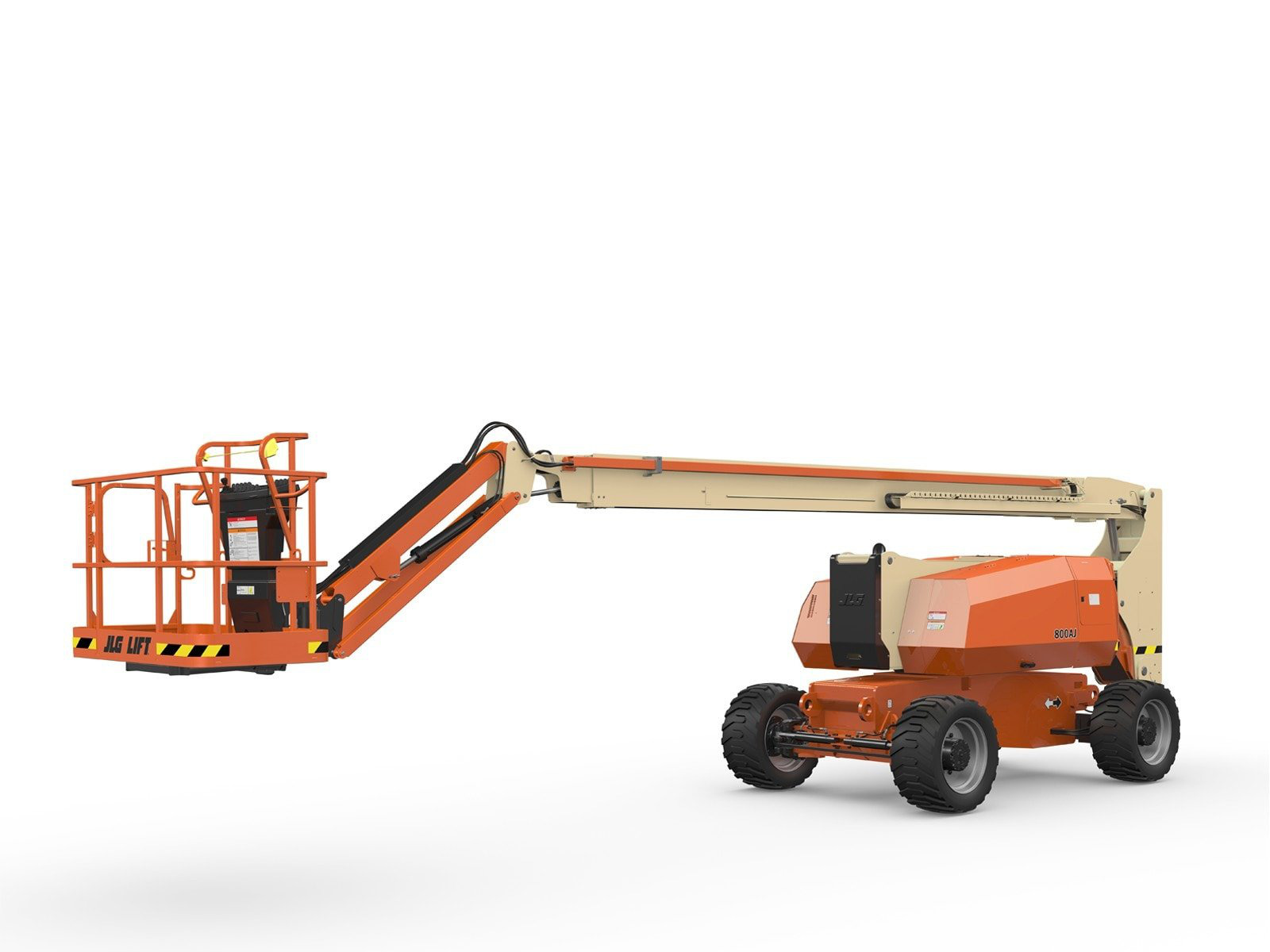

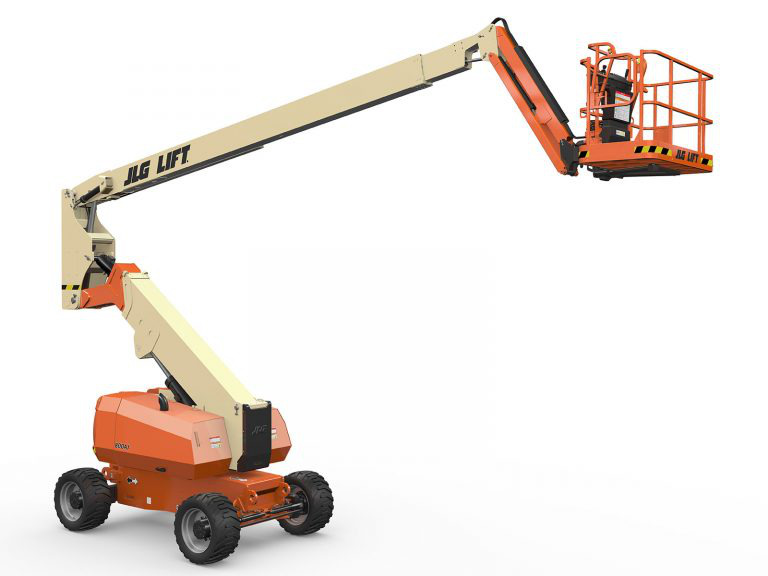

JLG IC 800AJ Series
Whether you’re venturing on or off rough terrain, the 800AJ Series boom lift lets you reach higher and get to your work faster. Our exclusive QuikStik® boom takes you from the ground to 80 ft (24.38 m) in less than 50 seconds. And with the industry’s best reach envelope—32 ft (9.75 m) of up and over and up to 53 ft (16.15 m) of outreach—there’s no obstacle you can’t handle. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools.
Overview
- Get the extra reach and versatility you need with the best reach envelope in the industry
- With Workstation in the Sky® accessories, you will have all you need to get the job done
- Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
- Jib – Range of Articulation 130 Degrees
Power Source:
- Auxiliary Power 12 Volts DC
Capacity – Fuel Tank 39 gal. / 147.63 L
Engine Type – Diesel DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type – Dual Fuel Ford MSG425 84hp
800AJ HC3 Exclusive Features:
- More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
- Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
- Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
Specs
96 x 36 in.PLATFORM SIZE
360°SWING
45 %GRADEABILITY
| MODEL | MACHINE WIDTH | MACHINE LENGTH | MACHINE HEIGHT | WORKING HEIGHT | HORIZONTAL OUTREACH | DRIVE SPEED | PLATFORM CAPACITY |
|---|---|---|---|---|---|---|---|
| 800AJ | 9 ft 10 in. | 36 ft 6 in. | 8 ft 2 in. | 80 ft. | 51 ft 10 in. | 4WD 3 mph. | 500 lb. |
| 800AJ HC3 | 8 ft 2 in. | 36 ft 10 in. | 9 ft 9 in. | 80 ft 4 in. | 52 ft 4 in. | 4WD 3 mph. | 1000 lb. |
Product specifications may not reflect the most current product details.
