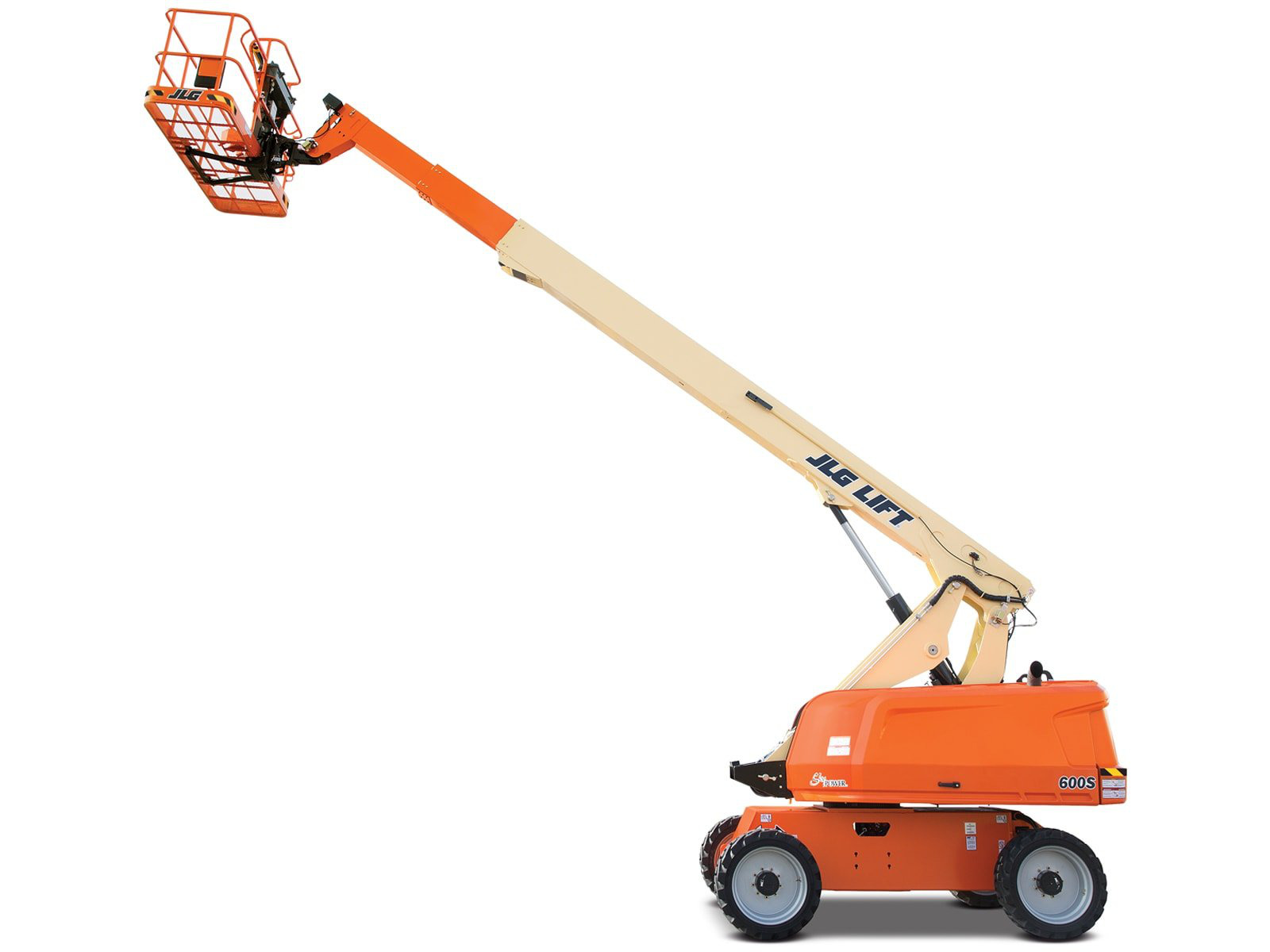

JLG IC 600S Series
The 600S Series boom lift has a powerful combination of performance and reliability so you can conquer all of your worksite challenges. Lift heavier loads with a platform capacity of 1,000 lb (454 kg) and get improved access with over 56 ft (17.07 m) of horizontal outreach. Mud, sand and rough terrain are no match for the standard oscillating axle and 45% grade climbing ability. Plus, our Hi-Capacity models allow you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools.
Overview
- Greater Platform Capacity – Newly designed with 600 lb. of platform capacity
- Faster Ascent – Reaches full height quicker for higher productivity on the job site
- Easy to Transport – Fit two on one truck with no overweight permit
- Ground Clearance – 11 in.
- Tailswing – 4 ft.
- Axle Oscillation – 8 in.
Power Source
- Auxiliary Power – 12 Volts DC
- Capacity – Fuel Tank 31 gal. / 117.35 L
- Engine Type – Diesel Deutz D2.9L4 48.8 hp (36.4 kW) Tier 4 Final
- Engine Type – Dual Fuel Ford MSG425-DF 84 hp (62.6 kW)
HC3 Model Features:
- More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform
- Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine
- Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
Specs
3.8 mph.DRIVE SPEED
360°SWING
45 %GRADEABILITY
| MODEL | MACHINE WIDTH | MACHINE LENGTH | MACHINE HEIGHT | WORKING HEIGHT | HORIZONTAL OUTREACH | PLATFORM CAPACITY | PLATFORM SIZE |
|---|---|---|---|---|---|---|---|
| 600S | 8 ft 2 in. | 28 ft 7 in. | 8 ft 2 in. | 59 ft 8 in. | 50 ft 2 in. | 600-1000 lb. | 96 x 36 in. |
| 600S HC3 | 8 ft 2 in. | 28 ft 7 in. | 8 ft 2 in. | 59 ft 8 in. | 50 ft 2 in. | 660-1000 lb. | 96 x 36 in. |
| 660SJ | 8 ft 2 in. | 35 ft 5 in. | 8 ft 2 in. | 65 ft 8 in. | 57 ft 1 in. | 550-750 lb. | 96 x 36 in. |
| 660SJ HC3 | 8 ft 2 in. | 35 ft 5 in. | 8 ft 2 in. | 65 ft 8 in. | 57 ft 1 in. | 650-1000 lb. | 96 x 36 in. |
Product specifications may not reflect the most current product details.
